Description

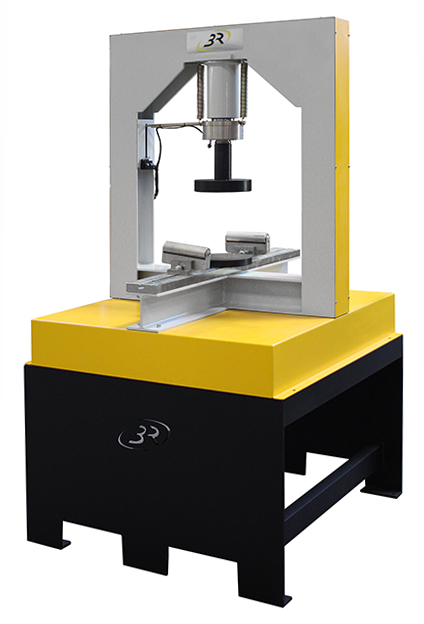

Flexural Testing Machine type Gantry
Standards : EN 12390-5
- Double acting cylinder, force 100 kN or 200 kN at 400 bar
- Stroke 300 mm, mounted with soft friction seals
- Automatic return of the cylinder after each test releasing the chamber for the next test
- Flail lower support round stainless steel diameter 40 mm and length 160 mm including an oscillating (other dimensions of support on request)
- Test chamber height: 350 mm
- Dimensions: approx. L 1 000 mm x D 1 675 mm x H 1 420 mm
- Net weight: about 300 kg
