ECO-SMARTZ AUTOMATIC TOUCH SCREEN COMPRESSION MACHINE 2000 kN

2000 kN Compression Testing Machine, Class 1 accuracy, 295 mm platen, 425 mm vertical clearance, dual-range load resolution, multiple unit display (kN/MPa/kgf), 220 V single-phase power supply, compact design (970 × 610 × 1300 mm), weight 783 kg. ADDITIONAL FEATURE :- *Upgraded fully covered safety enclosed *Extended base frame for comfortable operation level *USB port to export test result FEATURES:- *Energy saving *Less vibration & noise *Auto result saving up to 450 specimen *Simple operation system *Dual channels ready for compression & flexural *Piston travel switch

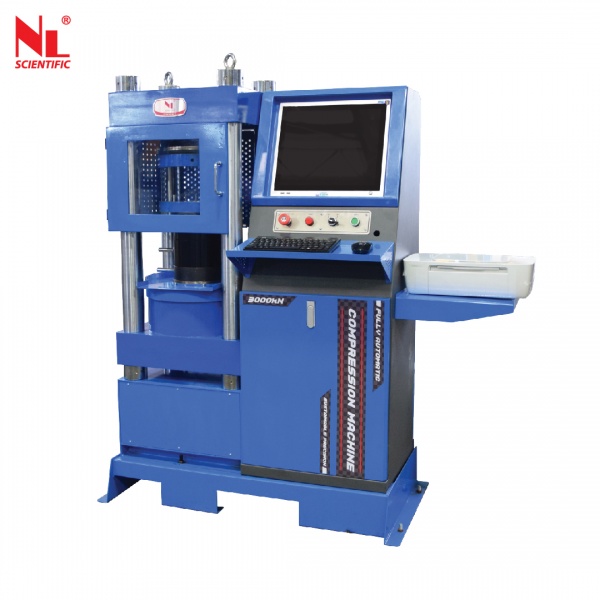

COMPUTERIZED COMPRESSION MACHINE 3000 kN (FULLY AUTOMATIC)

Technical Specifications: Model NL 4000 X / 035DSP with a maximum capacity of 3000 kN, Class 1 accuracy, ±1% relative error, and 0.1% sensor accuracy. Features a 295 mm compression platen, 250 mm piston ram diameter, 60 mm ram travel, and 373 mm vertical clearance. Maximum hydraulic pressure is 50 MPa with a resolution of 0.1–0.001 kN. Operates on 220–240 V, 50/60 Hz, single phase (6 A), with dimensions of 1220 × 620 × 1600 mm and an approximate weight of 1000 kg. *Powered by direct current (DC) motor for high energy saving motor durability. *Heavy duty industry TOUCH SCREEN operated monitor. *Extremely low sound & vibration during operation *User friendly computerised system *Original genuine parts low maintenance *Free from foundation mounting *Fully covered safety enclosed

DIGIMATIC COMPRESSION MACHINE 2000 kN (E-VERSION)

Technical Specifications: Model NL 4000 X / 022N with a maximum capacity of 2000 kN and ±1% relative error. Equipped with a Ø210 × 300 mm compression platen, 210 mm piston ram diameter, 60 mm ram travel, 450 mm vertical clearance, and 270 mm horizontal clearance. Machine dimensions are 900 × 600 × 1140 mm with an approximate weight of 600 kg. Operates on 220–240 V, 750 W, single-phase, 50/60 Hz, 5 A (1 HP).

Products

NL

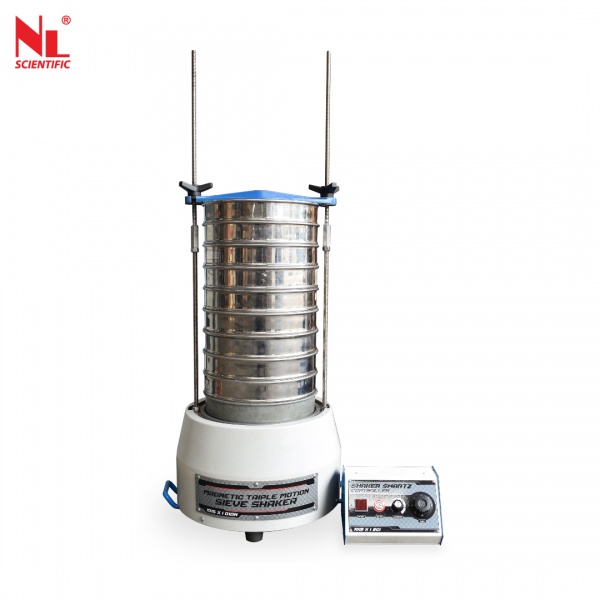

Triple Motion Sieves Shaker

Technical Specifications: Model NL 1015 X / 010, designed to accommodate up to 11 full-height 200 mm (8") sieves or 9 full-height 300 mm (12") sieves, including lid and receiver. Features an adjustable timer from 1 to 60 minutes. Machine dimensions are 540 × 460 × 1230 mm with an approximate weight of 53 kg. Operates on 220 V, single-phase, 50/60 Hz, with a 375 W (1/3 HP) motor. Features: Triple vibration action (vertical, lateral, and rotational) Quick clamping & release mechanism hand knob Low noise pollution

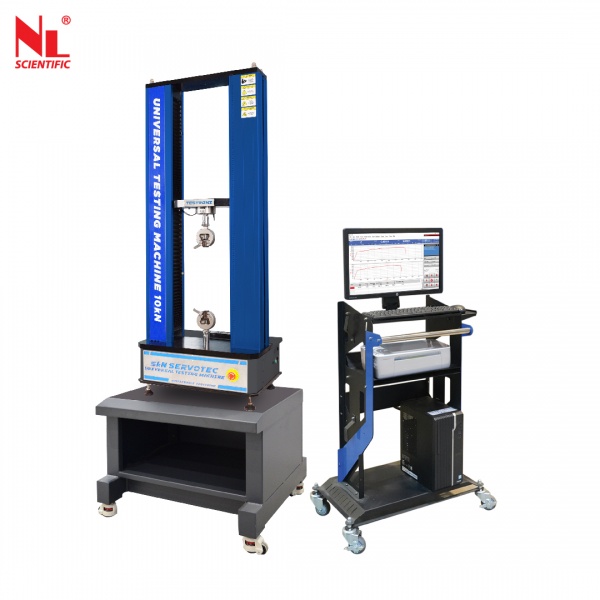

SERVOTEC FULLY AUTOMATIC UNIVERSAL TESTING MACHINE 10kN

TT Servotec Fully Automatic Universal Testing Machine out tester adopts DC speed regulating servomotor & reduction gears as the power source. Its real time displays test data & test status with LCD module. Professional designed servo control system realizes the PWM pulse width modulation control mode. Features: The system supports a wide range of material testing applications, including tensile stress, tensile strength, pulling strength, stable tensile stress, constant stress force, tear elongation, constant stress elongation, tear strength, force and elongation measurement at any point, peeling force, adhesion and peak value calculations, compression testing, bending (flexural) testing, adhesive and stripping force tests, extraction and puncture force tests, as well as cyclic testing, providing comprehensive performance evaluation for various materials and products.

HUMIDITY CHAMBER 360L (T.S VERSION)

Basic type humidity chamber specialty designed for construction material such as concrete, cement, mortar and etc. for accelerated curing test. Fully stainless steel at inner chamber and external casing, against humidity corrosion, the unit come with portable humifier, healing element and air compressor connected with digimatic control unit for reliable and high accuracy test performance. Technical Specifications: Model NL 3030 X / 012 with a temperature control range of 15–40°C and ±0.5°C control accuracy, maintaining a temperature fluctuation of ±1°C. Provides humidity control up to 95% RH with ±1% humidity accuracy. Equipped with 1000 W heating power, 180 W cooling power, and a 55 W humidification system with a 400 ml/h humidification capacity. The chamber dimensions are 700 × 560 × 1100 mm, while the overall machine dimensions are 1200 × 690 × 1680 mm with an approximate weight of 180 kg. Operates on 220–240 V, 50/60 Hz, single-phase, 16 A.

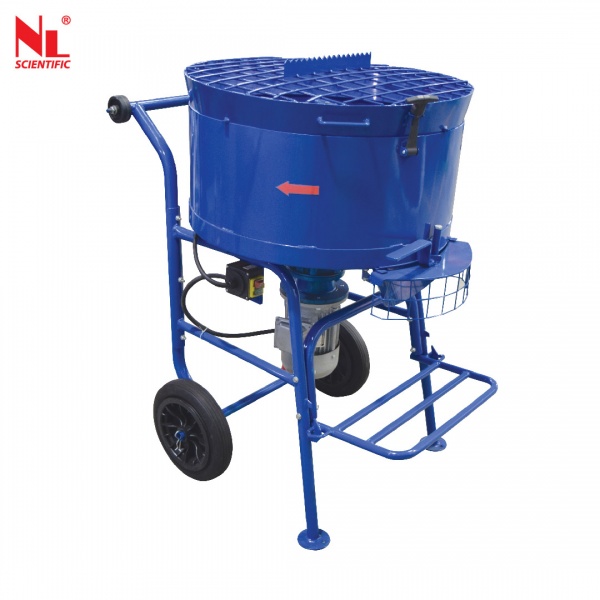

CONCRETE PAN TYPE MIXER (FORCED SPEED)

Used to prepare concrete specimens or mixtures, these pan type mixers ensure an uniform efficient fast mixture action. They are of easy & practical utilization; suitable for laboratory & field purposes. The mixers are equipped with a manually controlled discharge opening situated on the bottom part of the pan Technical Specifications: Model NL 4025 X / 009N with a mixture capacity of 60–80 liters and a 120-liter mixing pan measuring Ø715 × 310 mm. Operates at a rotation speed of 35/42 rpm (50/60 Hz). Machine dimensions are 750 × 1050 × 1230 mm with an approximate weight of 128 kg. Powered by 380–415 V, 2.2 kW, three-phase, 4.5 A, 50/60 Hz. Supplied with one copy of the instruction manual.

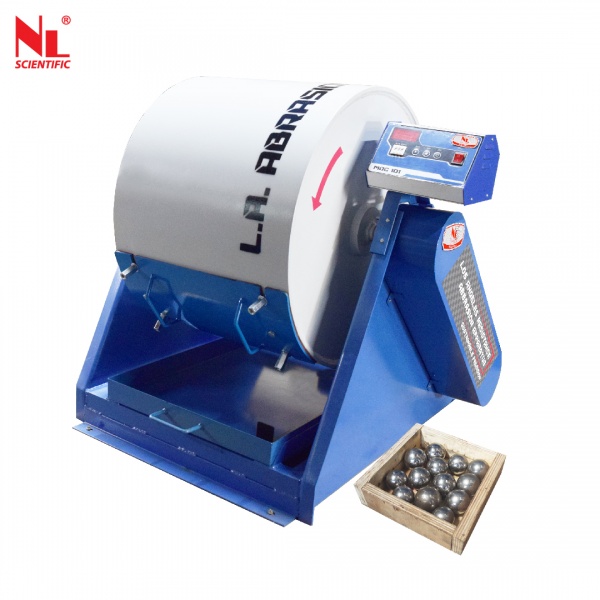

LOS ANGELES RESISTANCE ABRASION APPARATUS

Upgraded version to ECO-SMARTZ system for more stable & better performance. This apparatus used to determine the resistance of aggregates to abrasion. The drum is rotated by a speed reducer driven by an electric motor, equipped with an automatic counter. Technical Specifications: Model NL 1008 X / 003 with a drum rotation speed of 31–33 rpm. Machine dimensions are 1070 × 700 × 910 mm, with packing dimensions of 1270 × 900 × 1110 mm. The approximate machine weight is 363 kg, with a packing weight of 390 kg. Operates on 220–240 V, 50/60 Hz, powered by a 350 W motor with a current rating of 9.5 A.

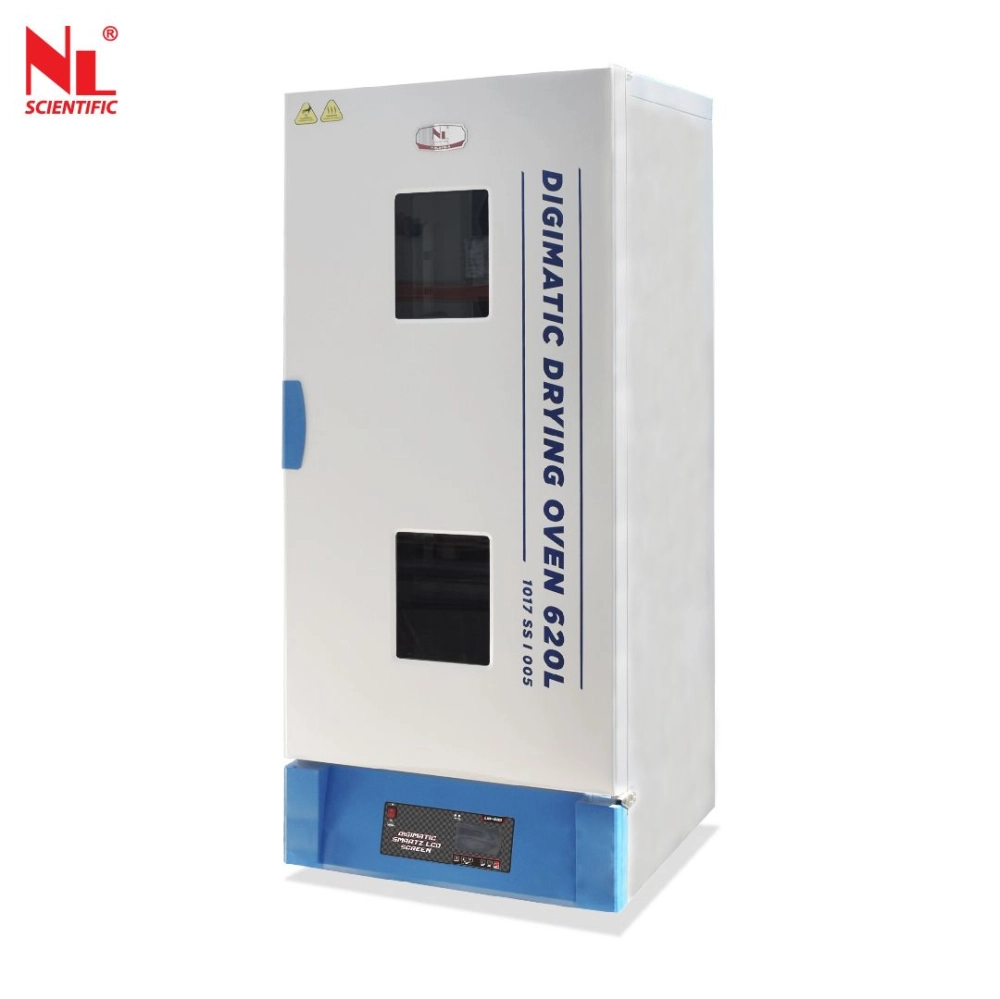

DIGIMATIC DRYING OVEN 620 LITRES

The Digimatic Control Drying Oven exterior is a general purpose laboratory used such as soil, concrete, asphalt and aggregate. Internal frame made of stainless steel sheet and external casing coated with hard wearing paint & insulated with thick mineral wool. Heat generated by high precision digital controller & temperature range from RT + 10。C to 250 。C. Technical Specifications: Model NL 1017 SS / 005 with a 620-liter chamber capacity and an operating temperature range from ambient +10°C to 250°C, maintaining a temperature fluctuation of ±5°C. Equipped with 3 heaters and 5 shelves, each supporting 25 kg under the standard configuration. The interior dimensions are 700 × 600 × 1500 mm, while the exterior dimensions are 820 × 760 × 1930 mm. Operates on 220–240 V, single-phase, 6 kW, 26 A, 50/60 Hz, with an approximate weight of 148 kg and a 999-hour timer. Unique Feature : 1. Circulation air flow system. 2. Built-in ventilation point. 3. D.S LCD Screen features;- - Time setting - Alarm alert - Real time clock display - Periodic s
