Description

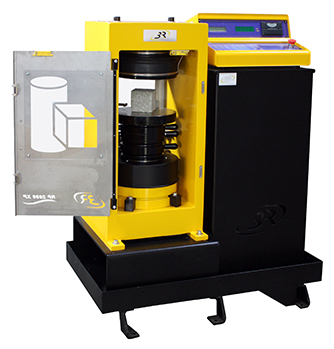

Automatic testing machine for compressive tests on cubes and cylinders
The XP range frame is a cast in one piece frame extremely resistant. Wether in 600, 2000 kN or in 3000 kN force, there are 2 different setups to choose from:
Specifications :
- Class 1
- High rigidity frame, controlled by footmeter
- Designed according to the European testing machines standards
- Hardened steel platens Ø 330 mm or 510 x 310 mm – Hardness > 58 HRC
- Vertical clearance: 340 mm – 170 mm with wedges
- Protection screen doors, with an automatic security sensor
- Openwork legs designed for easy handling with forklift truck
