Description
Automatic testing machine for compression tests on Cubes & Cylinders
The QC frame (with Four Columns) is a higly resistant frame compression , designed to realise tests on cubes and cylindrers samples.
Caracteristics:
- Class 1
- High rigidity frame, controlled by footmeter
- Designed accordingly to the European testing machines standards
- Hardened steel platens ø 300 mm or 510 x 310 mm – Hardness > 58 HRC
- Vertical clearance : 340 mm – 170 mm with wedges
- Protection screen doors with an automatic security sensor
- Openwork legs designed for easy handling with forklift truck

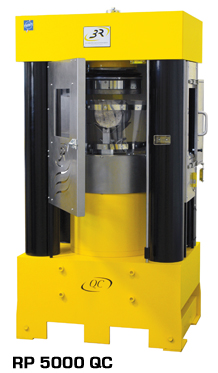

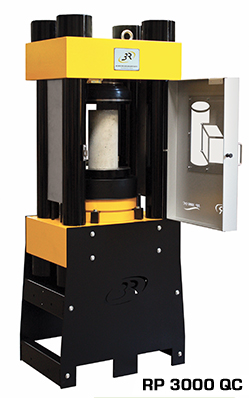

| 3 models | RP 2000 QC | RP 3000 QC | RP 5000 QC |
| Load (in kN) | 2 000 | 3 000 | 5 000 |
| Platens (in mm) | 310 x 510 | 310 x 510 or
410 x 610 or 310 x 640 |
ø 340 |
| Chamber (in mm) | 340 | 340 | 340 |
| Stroke (in mm) | 70 | 70 | 100 |
| Height (in mm) | 1 670 | 1 760 | 1 833 |
| Weight (in kg) | 1 270 | 1 680 | 4 780 |
