Description

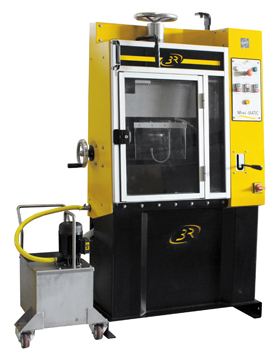

Minimatic model grinding machine for cylindrical specimens
Specifications:
- Lapidary for grinding cylinders or core samples (optionnal kit)
- Diamond grinding system
- Continuous watering system on the grinding wheel
- Closed water circuit (can be used in open circuit)
- Fast clamping of the specimens 16×32, 15×30 and 11×22 (core samples device optionnal)
- Stainless steel desludging tank, removable, on wheels, with a 50-litre capacity
- Control box with an emergency stop
- Manual forward movement. Automatic is optionnal
- Pass value : 0 to 0.5 mm
- Sheet steel waterproof compact close coupled frame with protection fairing
- Entirely waterproof casing made of stainless steel and polycarbonate
- Dimensions : L 1.100 mm x D 500 mm x H 1.750 mm
- Net wieght : 500 kg approximately
